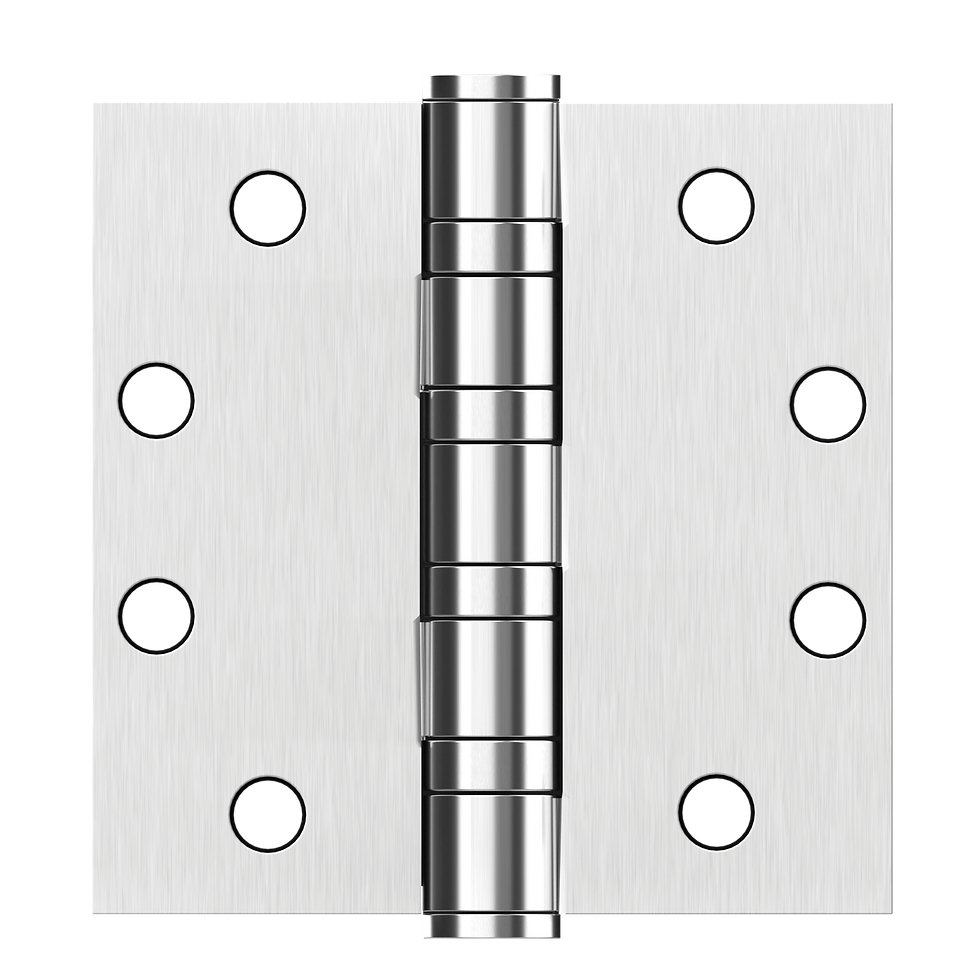

Model CHD5050 is a 5" x 5" heavy-duty commercial hinge designed for oversized or extremely heavy doors. With 4 ball bearings, a 5-knuckle steel design, and square corners, it ensures smooth, quiet, and durable performance. This hinge is available with either a removable or non-removable pin (NRP) depending on security needs. Reversible for left- or right-hand doors and includes Phillips flat-head screws for simple installation. Equivalent to Hager BB1168 and Stanley FBB168.

Size: 5" x 5" (127 x 127 mm)
Material: Steel with steel pin
Bearing Type: Ball bearing (4 bearings)
Pin Type: Removable or Non-Removable Pin (NRP)
Corners: Square
Knuckles: 5
Number of Holes: 8
Pin Diameter: 0.36"
Screw Size: #12 x 1/2" (machine), #12 x 1-1/4" (wood)
Use: Very heavy or high-frequency commercial doors
Installation: Phillips flat-head screws included
Model: CHD5050
