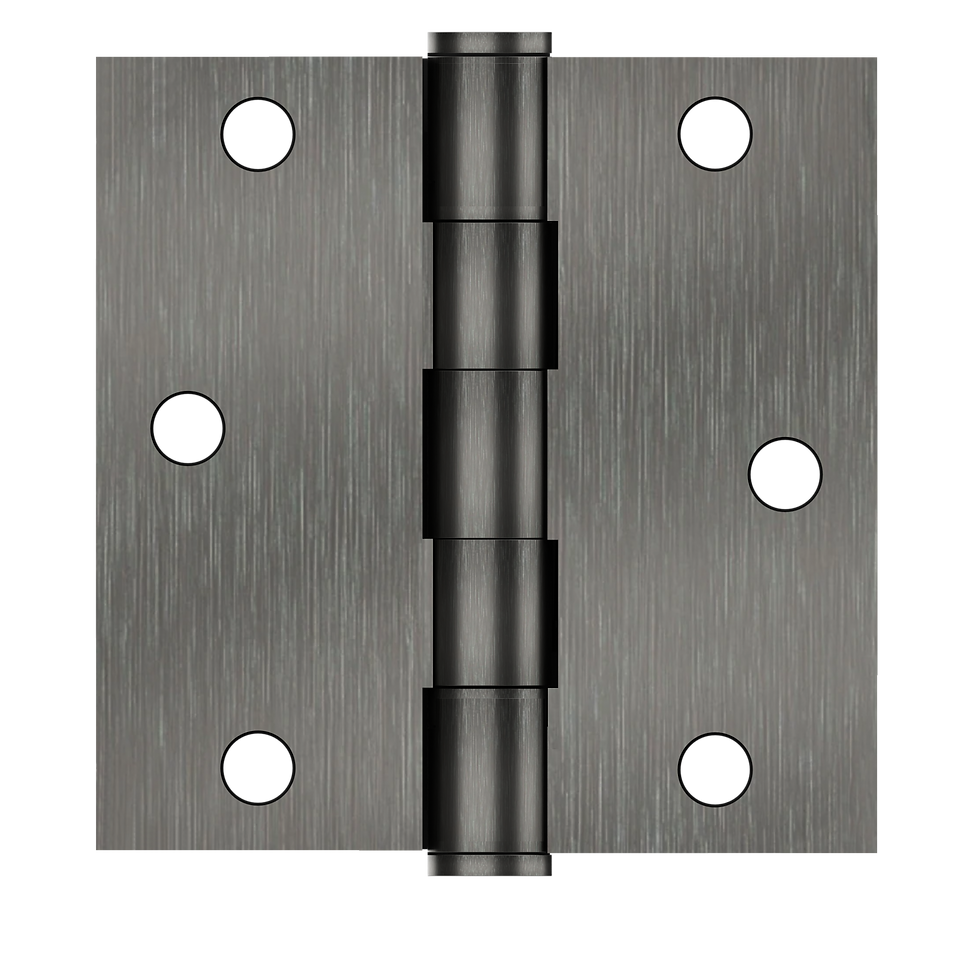

Model SB3030 is a 3" x 3" plain bearing hinge made from extruded solid brass for corrosion resistance and classic style. Featuring a 5-knuckle design with square corners and a removable stainless steel pin, it’s ideal for light-duty residential applications like cabinet doors or light interior doors. This hinge is reversible and comes with Phillips flat-head screws for easy installation.

Size: 3" x 3" (76.2 x 76.2 mm)
Material: Extruded solid brass
Bearing Type: Plain bearing
Pin Type: Removable stainless steel pin
Corners: Square
Knuckles: 5
Number of Holes: 6
Pin Diameter: 0.236"
Gauge of Metal: 0.122"
Screw Size: #9 x 3/4"
Use: Residential interior or cabinet doors
Installation: Phillips flat-head screws included
Model: SB3030
