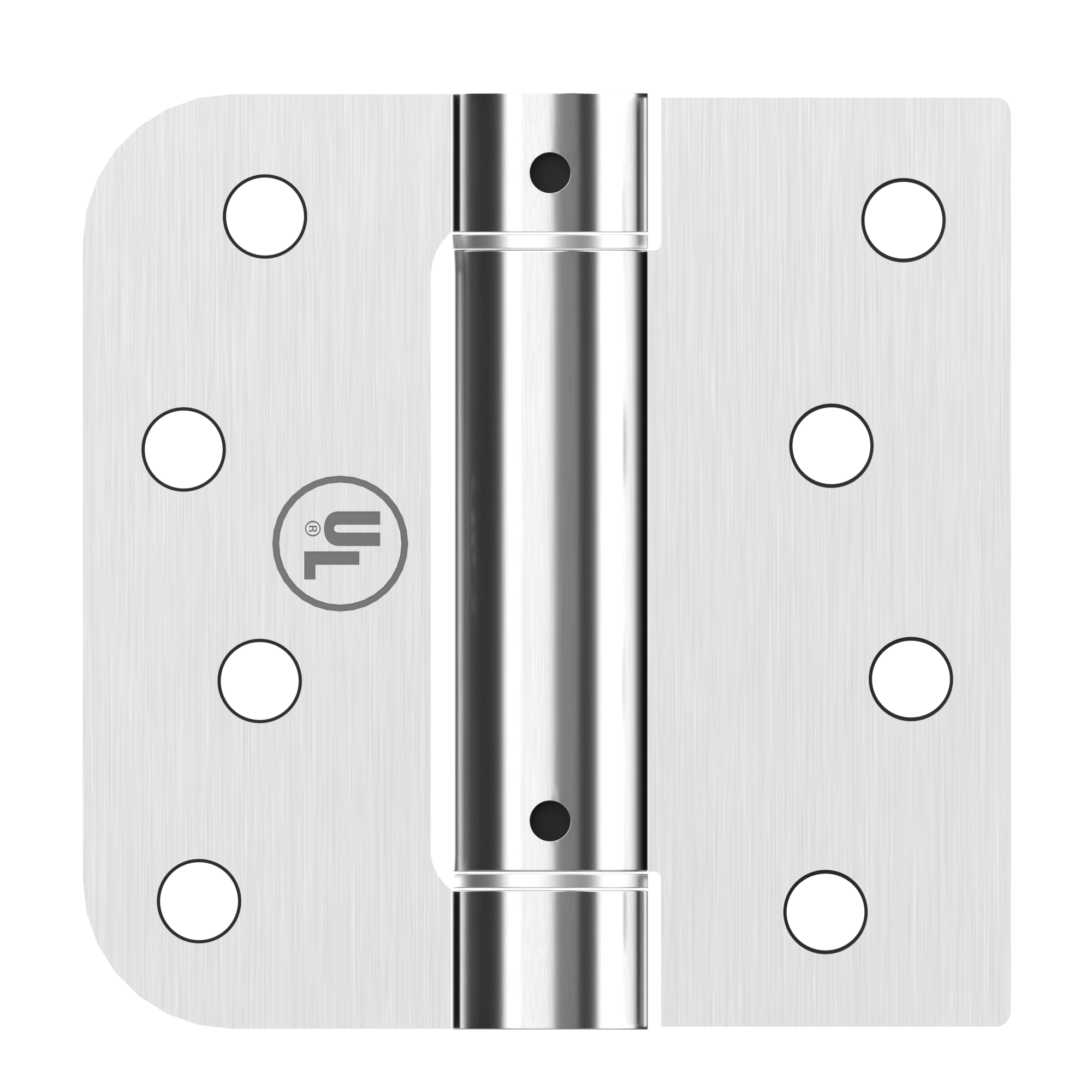

4" x 4" Adjustable Spring Hinge, Residential Weight – One Side 5/8" Radius Corners – Fire-Rated – Model SP4407 (Left-Hand or Right-Hand)
Model SP4407 is a 4" x 4" residential weight adjustable spring hinge with one leaf featuring a 5/8" radius corner, available in Left-Hand (LH) and Right-Hand (RH) configurations. Designed for doors requiring self-closing functionality where only one leaf of the hinge seat has a radius corner. UL listed and fire-rated, with mounting screws and hex wrench included.
Key Features:
Size: 4" x 4" (101.6 x 101.6mm)
Weight: Residential (.098" gauge)
Corners: One side 5/8" radius
Handing: Available in Left-Hand (LH) and Right-Hand (RH)
Barrel Diameter: 0.705"
Material: Steel leaf & barrel
UL Listed: Fire-rated (File R21804)
Included: Phillips screws (wood & machine) + hex wrench
Template: Non-template
Equivalent to: Hager 1754
Available Finishes:
Satin Brass (US4), Zinc Dichromate (US2D), Oil-Rubbed Bronze (US10B), Satin Nickel (US15), Satin Chrome (US26D), Prime Coat (USP), Luma Black (US1D), Matte Black (US19), Satin Stainless Steel (US32D)
Perfect for residential doors that require a self-closing hinge with one leaf radius corner and correct handing for proper fit.
